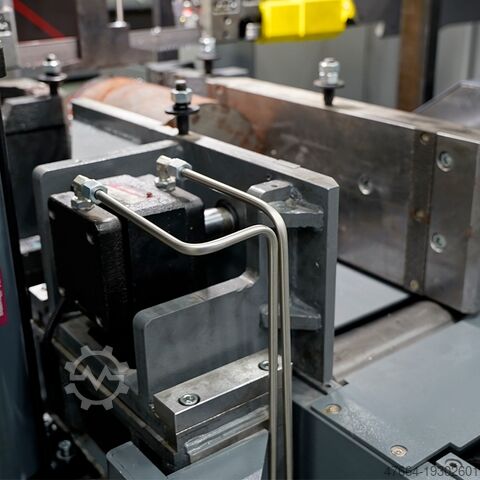

AI-based horizontal band saw

JLH saws H-530 PRO+

Schnittbereich rund: 530 mm
Cutting area, square (W x H): 530 x 530 mm
Dwjdewqchlopfx Ab Ded
Smallest size that can be cut: 20 x 20 mm
Clamping range: 0 - 530 mm
Bundle cutting range (min. W x H - max. W x H): 145 x 110 - 270 x 200 mm
Shortest length of cut piece : 5 mm
Shortest remaining piece length in automatic mode*: 190 mm
Shortest remaining piece length in single cut: 20 mm
Length: 2220 mm
Width including chip conveyor: 3530 mm
Height: 2530 mm
Weight of machine approx.: 3700 kg
Electrical connected load: 11,5 kW
Saw motor power: 7,5 kW
Hydraulic motor power: 1,5 kW
Cutting speed continuously adjustable: 20 - 80 m / min
Feed speed of the saw: 1 - 300 mm / min
Automatic material feed length, single stroke: 500 mm
Length of automatic material feed, multiple strokes: 9999 mm
Dimensions of the saw blade: 6300 x 54 x 1,6 mm


Standard configuration
Fully enclosed protection according to CE standardJLH-EHASaw MasterCE Electrical safetyPermanent magnetic synchronisation. MotorSaw arm Anti-collision detectionLED work lightLaser line projectionSaw blade breakage detectionSawing depth controlHMI+buttonsInverterDeviation detectorHydraulic belt tensionerVice differential pressure valvesAutomatic chip conveyor (spiral)Hydraulic belt guide tensionerVice pressure regulatorMotorised chip brushCooling fan for hydraulicsAutomatic lubrication deviceWork table with rollersHydraulic feedMain drive Precision gearboxSplit vice clampingMovable guide arm hydraulically clampedChip container 40(L)Tool box (wire brush, levelling pads, spare paint)One-piece saw blade
