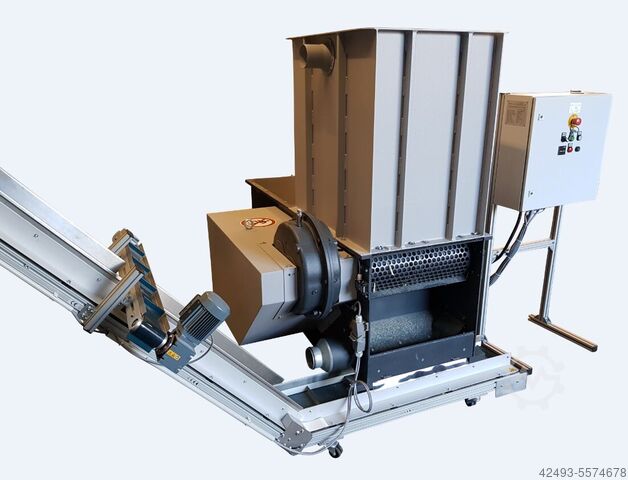

Cable shredder, shredder

mütek Systemtechnik MGZ-18,5 KL

The ideal machine for shredding cables,
including optimized cutting geometry,
approximately 9 operating hours.

Motor: 18.5 kW; 400 V - 50 Hz - 3 phase,
Bledpfegmfa Aox Apmep

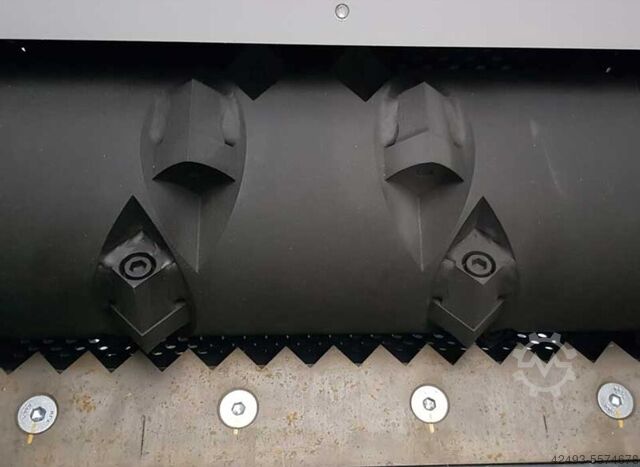

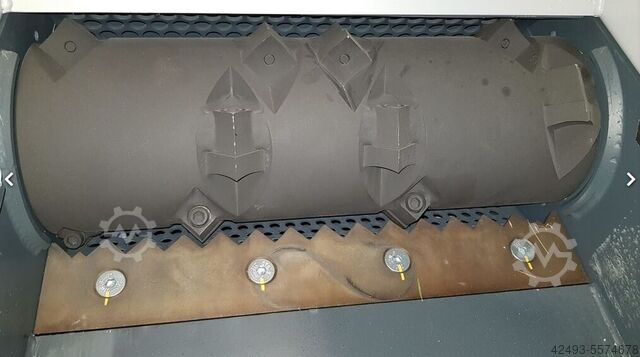

Knives: 14 pieces, 40x40mm, multi-rotatable,
Rotor diameter: 260 mm,
Control: Omron PLC,
Cutting chamber opening 600 x 800 mm,
Hopper volume approx. 0.6 m³,
Hydraulically actuated slide
Screen size optional (15 - 40mm)
Extraction nozzle Ø 160 mm
Weight approx. 1,300 kg
Dimensions (l x w x h) approx. 1737 x 1167 x 1650 mm

The following options are available at an additional cost:
- Double knife row + €1,990 net (28 instead of 14)
- Surcharge for 4-sided segment base + €2,170 net
(prevents the slide from jamming. Recommended when shredding plastics, paper, veneer with a thickness of less than 3 mm).
- Raise shredder by 30 cm (preparation for conveyor belt) + €1,980 net
- Inclined conveyor belt (discharge height approx. 220 cm) + €8,770 net
- Over-band magnet + €6,980 net
- Control for conveyor belt and over-band magnet + €2,750 net
(Start and stop synchronized with the shredder)
Bea9ia3l27

Requirements for the raw material:
- Mineral impurities such as sand, stones, etc. lead to increased wear.

We would be happy to offer a free test with your material. We invite you to visit us in Neckartailfingen for this purpose. Alternatively, you can send us your material by freight forwarder and we will document the test with photos and videos.
