Centro di fresatura a portale

PROMAC ZEPHYR VT 2.5 XL

MILLING CENTER PROMAC

Year 2015
Manufacturer PROMAC s.a.s.
Model ZEPHYR VT 2.5 XL
CNC HEIDENHAIN
MACHINE HOUR 20.330
SPINDLE HOUR 9.902



Description

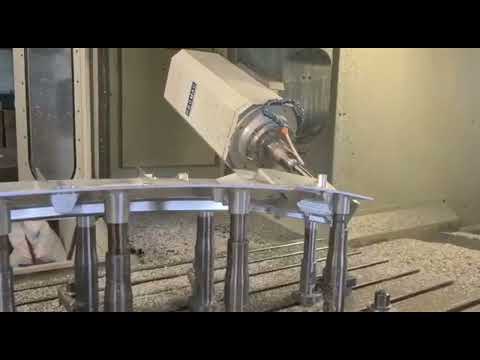

The Promac Zephyr VT is a gantry milling center designed for precision machining of large parts. It is ideal for industries requiring high accuracy and productivity, such as the aerospace, automotive, energy, and mold manufacturing industries. Its gantry configuration provides high stability and rigidity, making it suitable for complex machining of difficult materials.

TECHNICAL FEATURES

X-axis travel mm 2500
Y-axis travel mm 2200
Z-axis travel mm 1100
B-axis travel -110°…+110°
C-axis travel -200°…+200°

Table
Dimensions mm 2000x1200
Working position vertical axis
Hollow grooves mm18

Feeds
Rapid speed X Y Z m/min 40
Rapid speed B rpm/min 10
Rapid speed C rpm/min 10
Manual feed speed X Y Z m/min 0…40
Manual feed speed B rpm/min 0…10
Manual feed speed C rpm/min 0…10

Spindle
Type of electric spindle
Torque Nm 80
Power KW 30
Maximum rotations rpm 20000
Tool attachment HSKA63
Electrospindle weight kg 133
Cedpfxsy Nklco Am Ejgt

Tool magazine
No. of tools 32
Type of conical tool HSKA63
Maximum tool length mm 250
Maximum tool Ø mm 50
Maximum tool weight kg 4

Machine provided with CE certification

All the technical data shown are indicative and can be modified without notice and therefore they should not be considered binding
