Working platform semitrailer

KÄSSBOHRER SPS Maxima Schwerlast Plattform Auflieger

Kässbohrer SPS Maxima Heavy-Duty Platform Semi-Trailer

TECHNICAL INFORMATION:
* Fifth wheel height 1,150 mm
* Platform length 13,600 mm
* Gooseneck 180 mm
* Platform height (loaded) 1,300 mm
* Wheelbase 7,700 mm
* Axle distance 1,360 mm
* Overall width 2,540 mm
* Technical total weight (80 km/h) 45,000 kg
* Technical total weight (60 km/h) 46,000 kg
* Tare weight 7,637 kg

CHASSIS:
* BPW axles with air suspension and disc brakes
* Air suspension including load indicator
* 1st axle can be lifted
* Wabco braking system

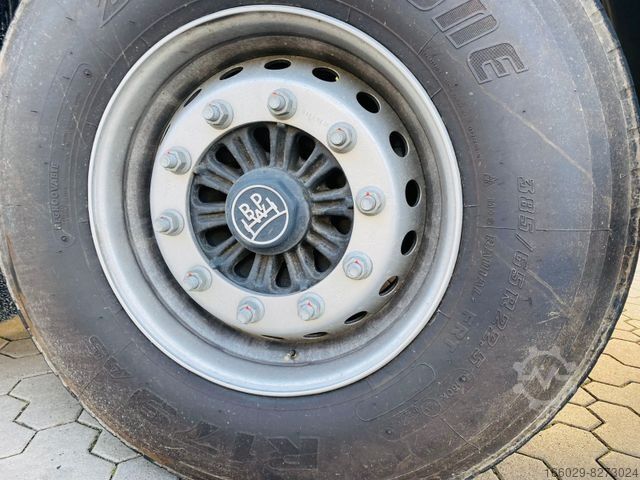

* Tires 385/65R22.5

FRAME:
* Chassis made of high-quality, high-strength S700 MC steel
* 30 mm hardwood flooring
* Jost support legs

CARGO SECURING:
* Lashing points
Bodpfx Apsi Rtfaomolp
* Recess pockets for stanchions
* Stowable stanchions
* Container locking mechanisms
* Front wall made of steel, 1,500 mm

ACCESSORIES:
* 1x PVC-coated steel toolbox 1,500 mm x 480 mm x 450 mm
* Stanchion storage location on the front wall
* Steel side impact protection

Color: RAL 3020 Traffic Red

We are happy to provide further information upon request.
