Mini crane XM1600 - with hydraulic Jib

Befard XM1600 + Jib hydaruliczny

Befard XM1600 WITH HYDRAULIC JIB - NEW

TECHNICAL SPECIFICATIONS:
• Lifting capacity: 1250 kg - PICK & CARRY
• Hydraulic jib lifting capacity: 650 kg
• Lifting capacity: 1600 kg with blade
• Standard support blade
Additional blade options:
• Forks
• Tow hook
• 3 hydraulic extensions
• Boom opening angle: 65 degrees
• Vertical reach: 10 m - with optional equipment
• Non-marking tracks
• Extendable undercarriage: 780-1250 mm
• Radio control
• Column rotation: 50 degrees
• Toggle gear
• Optional 500 kg or 990 kg winch
• Fixed and magnetic LED lighting

AVAILABLE POWER SUPPLY VERSIONS:
3-in-1 - petrol engine, electric motor (230 V, 400 V, 110 V available) and lithium-ion batteries
Diesel - powered only by the petrol engine
Diesel-electric - powered by a petrol engine and a 230 V, 400 V, or 110 V electric engine

Csdpfx Ajyrf D Dsb Dsri
OPTIONAL EQUIPMENT AVAILABLE:
• 500 kg or 990 kg winch (optional)
• Manual jib arm - extends reach by 1 m - Can be used with two manual jib cranes
• Searcher hook - works in 6 positions, extending reach by 0.5 m
• Radio control with display
• Platform for standing on the machine - Platform for standing on the machine to increase counterweight (not necessary in standard use)
• Load platform extension - Removable load platform extension 500 m
• XP Mount - Mount for the XP Glass Grabber - Mount for the XP Glass Grabber
• RAL Color - Choose your machine color from the RAL palette
• Tow Hook - Option to attach a tow hook to the crane's transport platform
• Ramps - 2.5 m long aluminum ramps

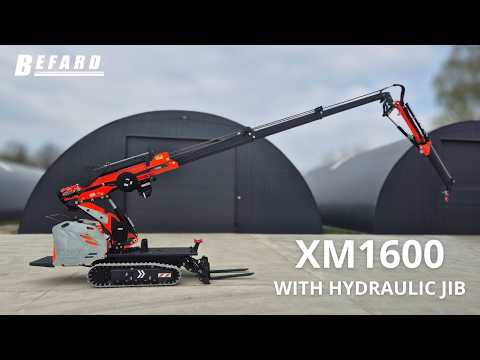

The Befard XM1600 is a modern pick-and-carry mini crane designed for maximum functionality and mobility in challenging working conditions. Its compact dimensions easily fit through standard doorways, and the extendable crawlers, up to 1250 mm wide, ensure stability and safety during lifting operations.
This versatile model offers an impressive reach of up to 11.2 meters – enabling work at second-story height. The XM1600 mini crane can move loads up to 1250 kg, and with the dozer blade, its maximum lifting capacity increases to 1600 kg. The optional winch further enhances application flexibility, making the XM1600 mini crawler crane ideal for assembly, service, industrial, and construction work.

Test equipment before purchase.

* The listed price is for the basic gasoline-powered version.
* Product available upon request.
* Net price.
